Chapter 2 Installation and Use
This chapter contains a description of various issues related to installation, setup, and usage of the NetX Duo Iperf Demonstration.
Installing the Demonstration
Please follow the platform specific installation instructions supplied in the distribution.
Installing Iperf
There is a variety of Iperf programs that you may use. However, the examples in this document are based on the Java-based Jperf 2.0.2, which is available from multiple sources on the Internet.
Note: Jperf requires that Java is installed on the host machine.
Setting the IP Address
By default, the IP address the NetX Duo Iperf Demonstration is set to 192.2.2.149. This is setup in the file demo_netx_duo_iperf.c as a parameter to the call to nx_ip_create.
Network Assumptions
This demonstration assumes that the Iperf host machine and the target board running the NetX Duo Iperf Demonstration are connected to a 100Mbps full-duplex Ethernet switch. To achieve best performance, there should be no other traffic on the test network.
It is also possible to connect the Iperf host and the NetX Duo target board back-to-back with a cross-over Ethernet cable.
Running the Demonstration
Running the demonstration is easy; simply load, build and execute the NetX Duo Iperf Demonstration project – typically named demo_netx_duo_iperf.
Browse to the Demonstration

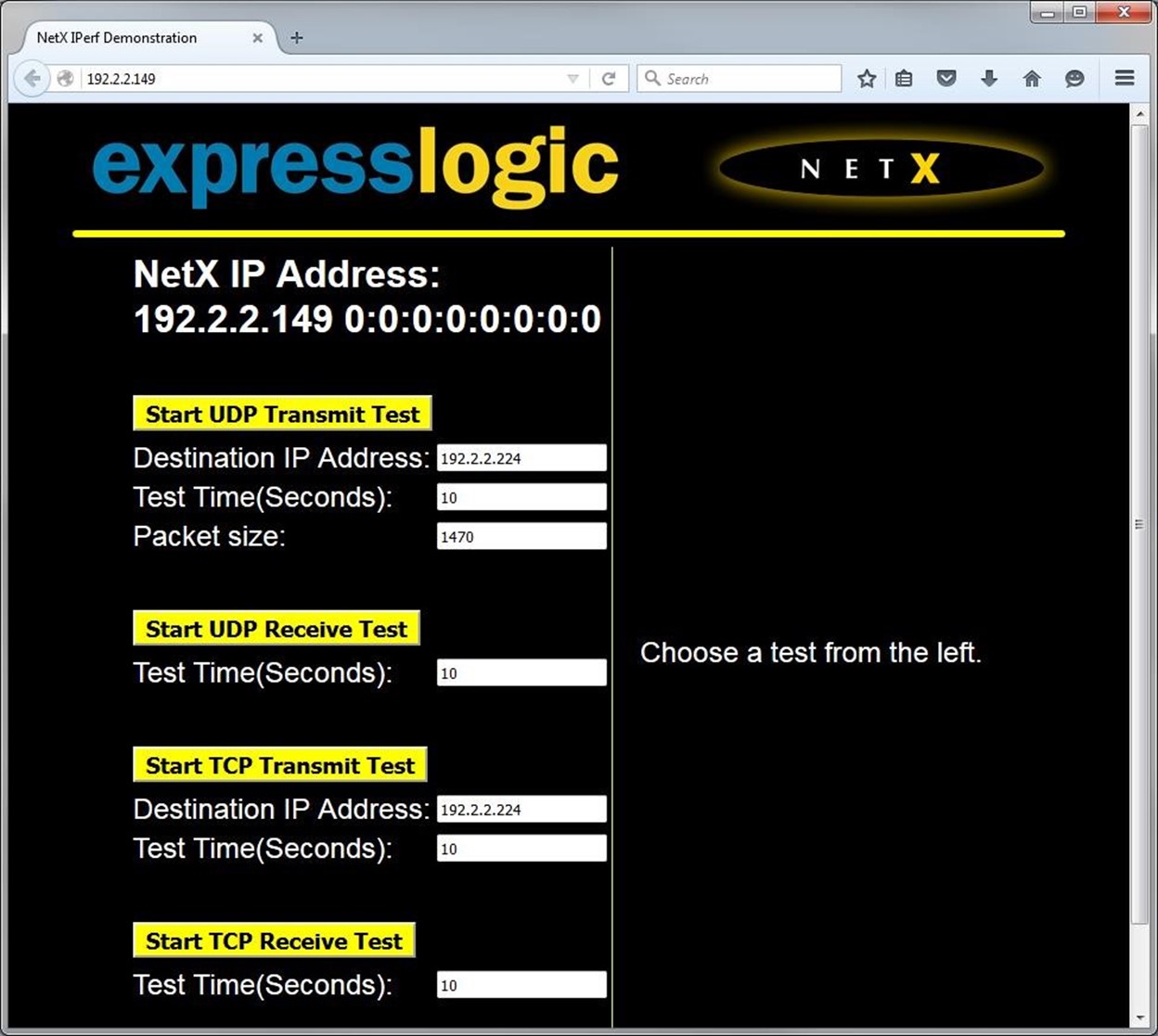

Browse to the target board via a browser on the Iperf host platform. Assuming the target board IP address of 192.2.2.149, the following is an example of the NetX Duo Iperf Demonstration initial web page.
Running Jperf

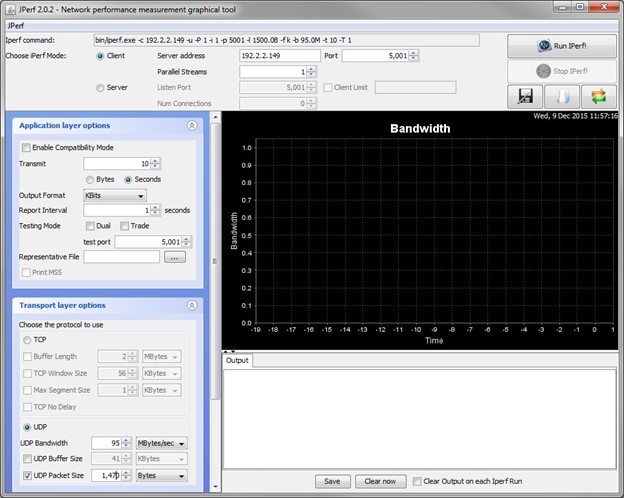

Running Jperf is easy, simply double-click on the Windows batch file jperf.bat. This launches the Jperf IDE, as shown below. Once the Jperf IDE is displayed, the Server Address field must be set to the IP address of the NetX Duo Iperf Demonstration target board. In this example, the NetX Duo target board IP address is 192.2.2.149. Also worth noting are the UDP Bandwidth and UDP Packet Size fields. These need to be set up for optimal UDP receive performance, as shown below.
