Chapter 2 - USBX Host Stack Installation

Host Considerations

Computer Type

Embedded development is usually performed on Windows PC or Unix host computers. After the application is compiled, linked, and located on the host, it is downloaded to the target hardware for execution.

Download Interfaces

Usually, the target download is done over an RS-232 serial interface, although parallel interfaces, USB, and Ethernet are becoming more popular. See the development tool documentation for available options.

Debugging Tools

Debugging is done typically over the same link as the program image download. A variety of debuggers exist, ranging from small monitor programs running on the target through Background Debug Monitor (BDM) and In-Circuit Emulator (ICE) tools. The ICE tool provides the most robust debugging of actual target hardware.

Required Hard Disk Space

The source code for USBX is delivered in ASCII format and requires approximately 500 KBytes of space on the host computer’s hard disk.

Target Considerations

USBX requires between 24 KBytes and 64 KBytes of Read Only Memory (ROM) on the target in host mode. The amount of memory required is dependent on the type of controller used and the USB classes linked to USBX. Another 32 KBytes of the target’s Random Access Memory (RAM) are required for USBX global data structures and memory pool. This memory pool can also be adjusted depending on the expected number of devices on the USB and the type of USB controller. The USBX device side requires roughly 10-12 K of ROM depending on the type of device controller. The RAM memory usage depends on the type of class emulated by the device.

USBX also relies on ThreadX semaphores, mutexes, and threads for multiple thread protection, and I/O suspension and periodic processing for monitoring the USB bus topology.

Product Distribution

USBX can be obtained from our public source code repository at https://github.com/eclipse-threadx/usbx/.

The following is a list of several important files in the repository:

All filenames are in lower-case. This naming convention makes it easier to convert the commands to Unix development platforms.

USBX Installation

USBX is installed by cloning the GitHub repository to your local machine. The following is typical syntax for creating a clone of the USBX repository on your PC:

    git clone https://github.com/eclipse-threadx/usbx

Alternatively you can download a copy of the repository using the download button on the GitHub main page.

You will also find instructions for building the USBX library on the front page of the online repository.

The following general instructions apply to virtually any installation:

  1. Use the same directory in which you previously installed ThreadX on the host hard drive. All USBX names are unique and will not interfere with the previous USBX installation.
  2. Add a call to ux_system_initialize at or near the beginning of tx_application_define. This is where the USBX resources are initialized.
  3. Add a call to ux_host_stack_initialize.
  4. Add one or more calls to initialize the required USBX.
  5. Add one or more calls to initialize the host controllers available in the system.
  6. It may be required to modify the tx_low_level_initialize.c file to add low-level hardware initialization and interrupt vector routing. This is specific to the hardware platform and will not be discussed here.
  7. Compile application source code and link with the USBX and ThreadX run time libraries (FileX and/or Netx Duo may also be required if the USB storage class and/or USB network classes are to be compiled in), ux.a (or ux.lib) and tx.a (or tx.lib). The resulting can be downloaded to the target and executed.

Configuration Options

There are several configuration options for building the USBX library. All options are located in the ux_user.h.

The list below details each configuration option.

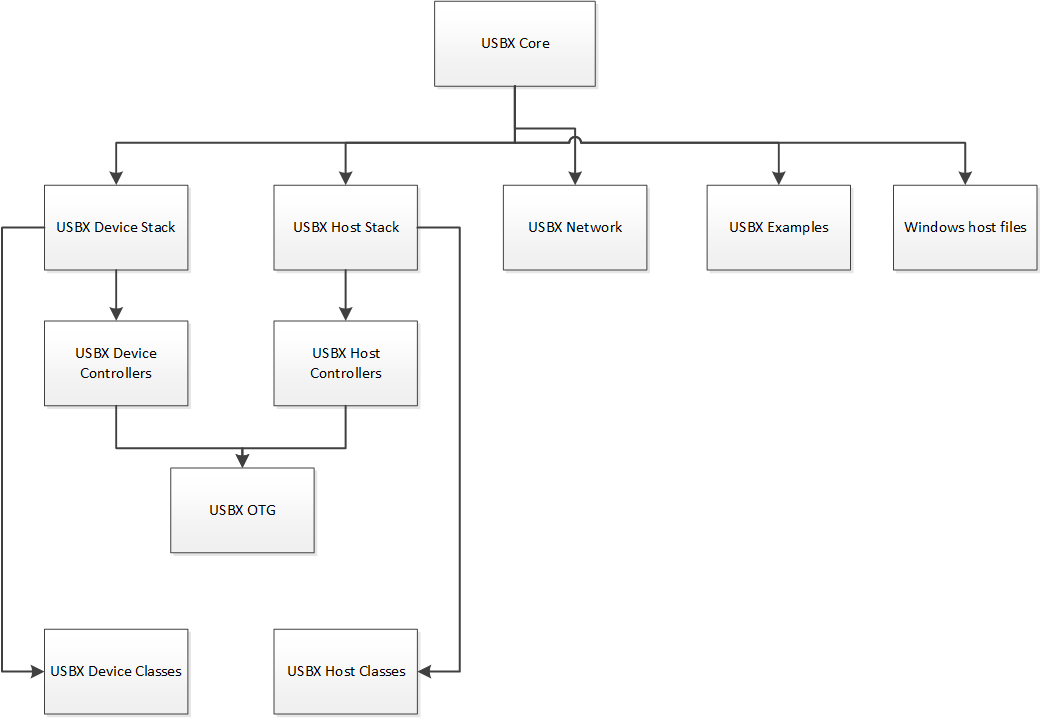

Source Code Tree

The USBX files are provided in several directories.

Source Code Tree

In order to make the files recognizable by their names, the following convention has been adopted:

File Suffix Name File description
ux_host_stack usbx host stack core files
ux_host_class usbx host stack classes files
ux_hcd usbx host stack controller driver files
ux_device_stack usbx device stack core files
ux_device_class usbx device stack classes files
ux_dcd usbx device stack controller driver files
ux_otg usbx otg controller driver related files
ux_pictbridge usbx pictbridge files
ux_utility usbx utility functions
demo_usbx demonstration files for USBX

Initialization of USBX resources

USBX has its own memory manager. The memory needs to be allocated to USBX before the host or device side of USBX is initialized. USBX memory manager can accommodate systems where memory can be cached.

The following function initializes USBX memory resources with 128K of regular memory and no separate pool for cache safe memory:

/* Initialize USBX Memory */

ux_system_initialize(memory_pointer,(128*1024),UX_NULL,0);

The prototype for the ux_system_initialize is as follows.

UINT ux_system_initialize(
    VOID *regular_memory_pool_start,
    ULONG regular_memory_size,
    VOID *cache_safe_memory_pool_start,
    ULONG cache_safe_memory_size);

Input parameters:

Not all systems require the definition of cache safe memory. In such a system, the values passed during the initialization for the memory pointer will be set to UX_NULL and the size of the pool to 0. USBX will then use the regular memory pool in lieu of the cache safe pool.

In a system where the regular memory is not cache safe and a controller requires to perform DMA memory (like OHCI, EHCI controllers amongst others) it is necessary to define a memory pool in a cache safe zone.

Uninitialization of USBX resources

USBX can be terminated by releasing its resources. Prior to terminating usbx, all classes and controller resources need to be terminated properly. The following function uninitializes USBX memory resources :

/* Unitialize USBX Resources */

ux_system_uninitialize();

The prototype for the ux_system_initialize is as follows.

UINT ux_system_uninitialize(VOID);

Definition of USB Host Controllers

It is required to define at least one USB host controller for USBX to operate in host mode. The application initialization file should contain this definition. The following line performs the definition of a generic host controller.

ux_host_stack_hcd_register("ux_hcd_controller",
        ux_hcd_controller_initialize, 0xd0000, 0x0a);

The ux_host_stack_hcd_register has the following prototype.

UINT ux_host_stack_hcd_register(
    UCHAR *hcd_name,
    UINT (*hcd_initialize_function)(struct UX_HCD_STRUCT *),
    ULONG hcd_param1, ULONG hcd_param2);

The ux_host_stack_hcd_register function has the following parameters.

In our previous example:

Following is an example of the initialization of USBX in host mode with one host controller and several classes.

UINT status;

/* Initialize USBX. */
ux_system_initialize(memory_ptr, (128*1024),0,0);

/* The code below is required for installing the USBX host stack. */
status = ux_host_stack_initialize(UX_NULL);

/* If status equals UX_SUCCESS, host stack has been initialized. */

/* Register all the host classes for this USBX implementation. */
status = ux_host_class_register("ux_host_class_hub", ux_host_class_hub_entry);

/* If status equals UX_SUCCESS, host class has been registered. */
status = ux_host_class_register("ux_host_class_storage", ux_host_class_storage_entry);

/* If status equals UX_SUCCESS, host class has been registered. */
status = ux_host_class_register("ux_host_class_printer", ux_host_class_printer_entry);

/* If status equals UX_SUCCESS, host class has been registered. */
status = ux_host_class_register("ux_host_class_audio", ux_host_class_audio_entry);

/* If status equals UX_SUCCESS, host class has been registered. */

/* Register all the USB host controllers available in this system. */
status = ux_host_stack_hcd_register("ux_hcd_controller", ux_hcd_controller_initialize, 0x300000, 0x0a);

/* If status equals UX_SUCCESS, USB host controllers have been registered. */

Definition of Host Classes

It is required to define one or more host classes with USBX. A USB class is required to drive a USB device after the USB stack has configured the USB device. A USB class is specific to the device. One or more classes may be required to drive a USB device depending on the number of interfaces contained in the USB device descriptors.

This is an example of the registration of the HUB class.

status = ux_host_stack_class_register("ux_host_class_hub", ux_host_class_hub_entry);

The function ux_host_class_register has the following prototype.

UINT ux_host_stack_class_register(
    UCHAR *class_name,
    UINT (*class_entry_address) (struct UX_HOST_CLASS_COMMAND_STRUCT *));

In the example of the HUB class initialization:

Access to Host Class Function Instance

After class registration and host controller driver (HCD) registration, the USB devices connected to USB port can be detected and enumerated. During enumeration, registered class checks connected device information, if the right information is found memory is allocated for class function instance and the instance is then activated. The instance is used by application to do class function specific operations.

When USB device is removed from USB port, the activated class function instance is then deactivated.

There are two ways to access the host instances: from registered class and/or through host change callback notification.

Get instance through registered class

When class function instance is activated, it’s linked to the class who owns the instance. So through class the instance can be accessed. E.g., to check if storage instance is available:

    /* Find the main storage container (class)  */
    status =  ux_host_stack_class_get(_ux_system_host_class_storage_name, &ux_class);
    if (status != UX_SUCCESS)
        return(status);

    /* Find the storage instance under container (class)  */
    status =  ux_host_stack_class_instance_get(ux_class, 0, (void **) &storage);
    if (status == UX_SUCCESS)
    {
        /* Check if storage state, storage specific resources are ready.  */
        if (storage -> ux_host_class_storage_state == UX_HOST_CLASS_INSTANCE_LIVE &&
            ux_class -> ux_host_class_ext != UX_NULL &&
            ux_class -> ux_host_class_media != UX_NULL)
            return(UX_SUCCESS);
    }

ux_host_stack_class_get is used to get a registered class, given class name used on registration.

ux_host_stack_class_instance_get is used to get function instance from specific registered class.

In example, the state of the instance and some other function related resources is checked, to confirm the instance is ready to use.

Get instance through host change callback notification

There is an optional host change callback function which is assigned on host stack initialization. If the function is available, it’s invoked when function instance is activated and in good state with all required resources available. Inside the callback the instance is passed and inside application callback user can save it for further operations.

For more details, see ux_host_stack_initialize.

Troubleshooting

USBX is delivered with a demonstration file and a simulation environment. It is always a good idea to get the demonstration platform running first—either on the target hardware or a specific demonstration platform.

If the demonstration system does not work, try the following things to narrow the problem.

USBX Version ID

The current version of USBX is available both to the user and the application software during run-time. The programmer can obtain the USBX version from examination of the ux_port.h file. In addition, this file also contains a version history of the corresponding port. Application software can obtain the USBX version by examining the global string _ux_version_id, which is defined in ux_port.h.
